这是一款来自意大利的高亮金属涂层聚酯网（非金属），与玻璃夹层后有很好的金属效果，针对户外幕墙使用，填补了工业金属丝网与传统装饰织物之间无法抗紫外线和防老化等的差距，使建筑体有金属外观。在室内使用也有不一样的高级工整美感。

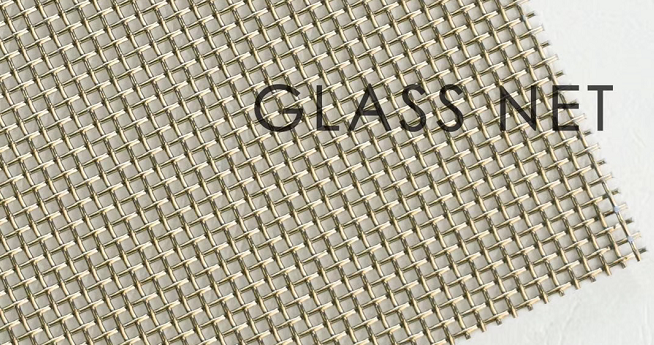

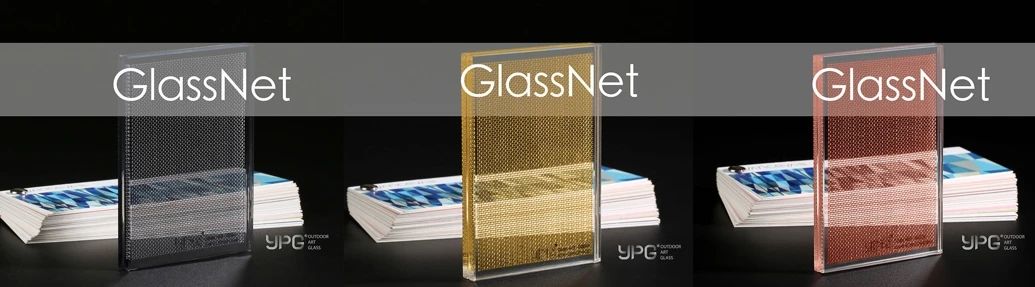

GLASS NET

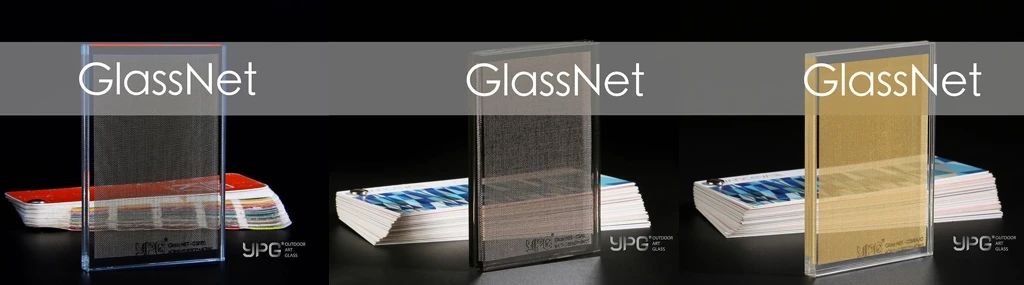

      YPG把Mesh引入中国,结合艺术装饰玻璃技术和国人对设计的审美观，优化诞生了GLASS NET系列的OUTDOOR ART GLASS，丰富了建筑幕墙在玻璃产品应用上的选择。

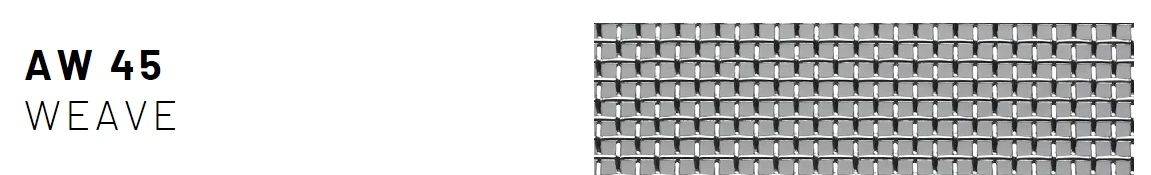

       Metal coated precision woven mesh fabrics, glass lamination engineered fabrics, high compatibility with all interlayers, facade shading, light passages from 25% to 60%, thickness from 70 to 950 micron, heat and energy saving, high privacy levels, certified quality and safety, made in italy, recyclable product, bird clashes prevention, endless customized solutions, design freedom, high aesthetic quality, high efficiency and technological solutions, technical and graphic support.TECHNICAL

DATAOpen Area [%]

44

Light Transmittance [%] EN 410:2011

45,6

G-Value [%] EN 410:2011

51,5

Thickness [µm]

950

Weight [g/m2] UNI 5114:1982

410

Fabric

Polyester

Aesthetic

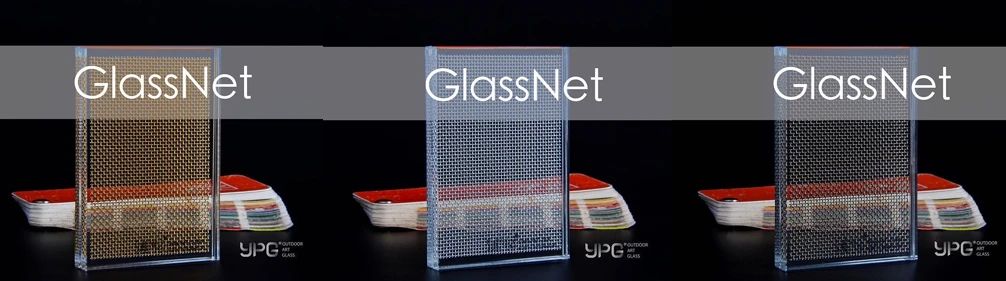

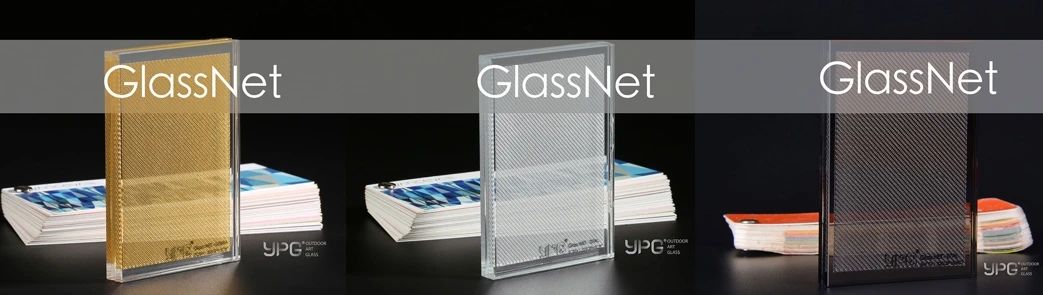

Silver / Bronze / Platinum / Copper / Gold

Max available width [cm]

160

Interlayers Compatibility

SentryGlas（美国杜邦）

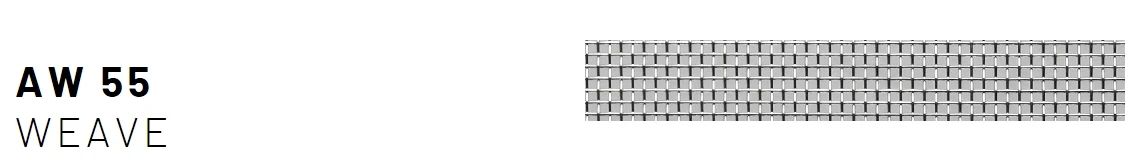

         Metal coated precision woven mesh fabrics, glass lamination engineered fabrics, high compatibility with all interlayers, facade shading, light passages from 25% to 60%, thickness from 70 to 950 micron, heat and energy saving, high privacy levels, certified quality and safety, made in italy, recyclable product, bird clashes prevention, endless customized solutions, design freedom, high aesthetic quality, high efficiency and technological solutions, technical and graphic support.TECHNICAL

DATAOpen Area [%]

55

Light Transmittance [%] EN 410:2011

51,4

G-Value [%] EN 410:2011

55,3

Thickness [µm]

478

Weight [g/m2] UNI 5114:1982

155

Fabric

Polyester

Aesthetics

Silver / Bronze / Platinum / Copper / Gold

Max available width [cm]

160

Interlayers Compatibility

SentryGlas（美国杜邦）

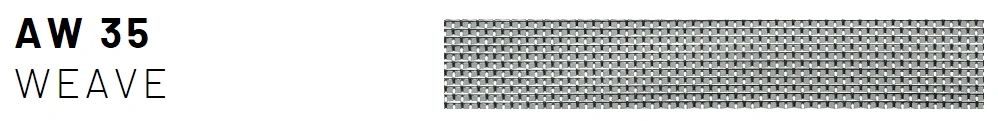

            Metal coated precision woven mesh fabrics, glass lamination engineered fabrics, high compatibility with all interlayers, facade shading, light passages from 25% to 60%, thickness from 70 to 950 micron, heat and energy saving, high privacy levels, certified quality and safety, made in italy, recyclable product, bird clashes prevention, endless customized solutions, design freedom, high aesthetic quality, high efficiency and technological solutions, technical and graphic support.TECHNICAL

DATAOpena Area [%]

35

Light Transmittance [%] EN 410:2011

33,1

G-Value [%] EN 410:2011

42,4

Thickness [µm]

460

Weight [g/m2] UNI 5114:1982

235

Fabric

Polyester

Aesthetics

Silver / Bronze / Platinum / Copper / Gold

Max available width [cm]

160

Interlayers Compatibility

SentryGlas（美国杜邦）

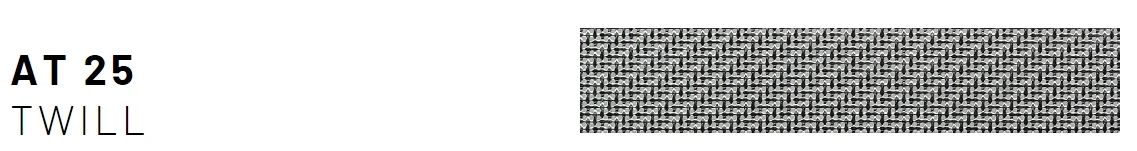

            Metal coated precision woven mesh fabrics, glass lamination engineered fabrics, high compatibility with all interlayers, facade shading, light passages from 25% to 60%, thickness from 70 to 950 micron, heat and energy saving, high privacy levels, certified quality and safety, made in italy, recyclable product, bird clashes prevention, endless customized solutions, design freedom, high aesthetic quality, high efficiency and technological solutions, technical and graphic support.TECHNICAL

DATAOpen Area [%]

25

Light Transmittance [%] EN 410:2011

45

G-Value [%] EN 410:2011

37

Thickness [µm]

500

Weight [g/m2] UNI 5114:1982

460

Fabric

Polyester

Aesthetics

Silver / Platinum / Copper / Gold

Max available width [cm]

160

Interlayers Compatibility

SentryGlas（美国杜邦）

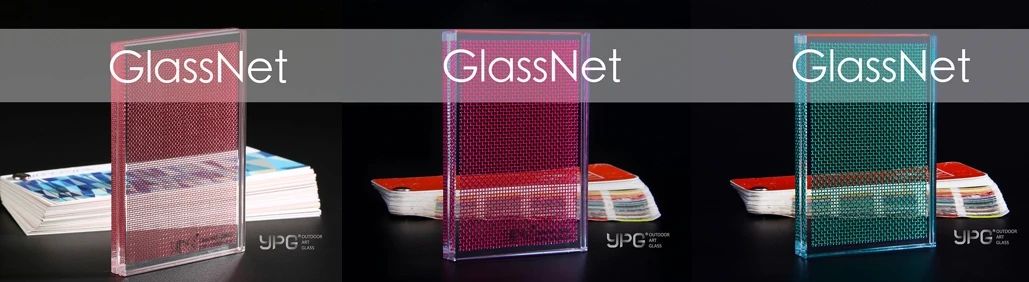

DIY COLOR OPTIONS

Aesthetics

RED / VIO/ GR

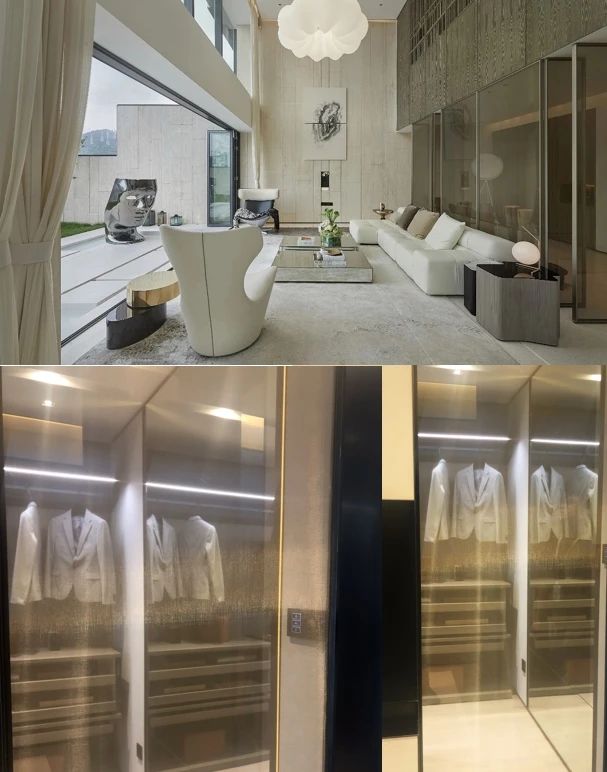

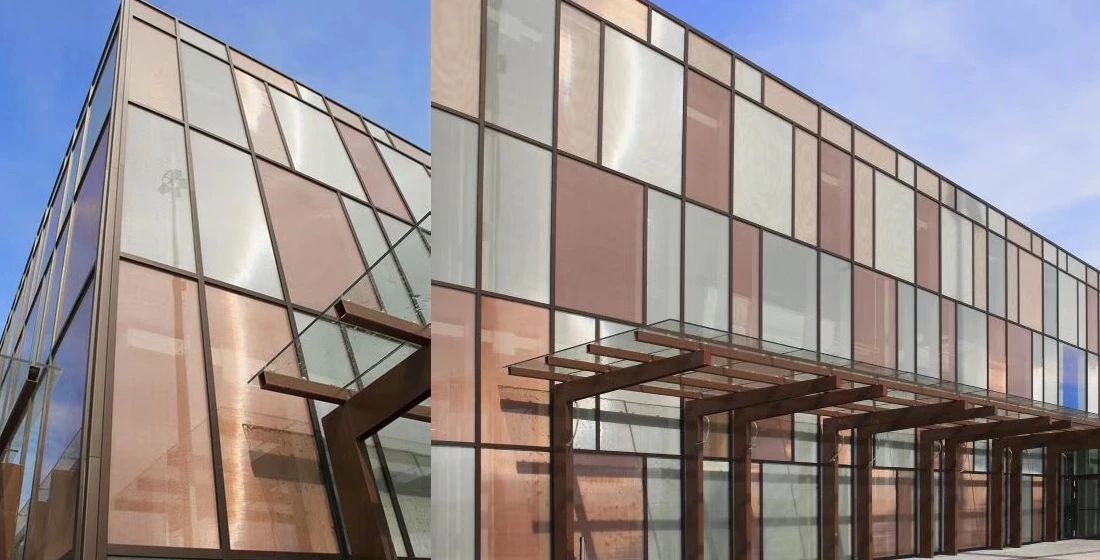

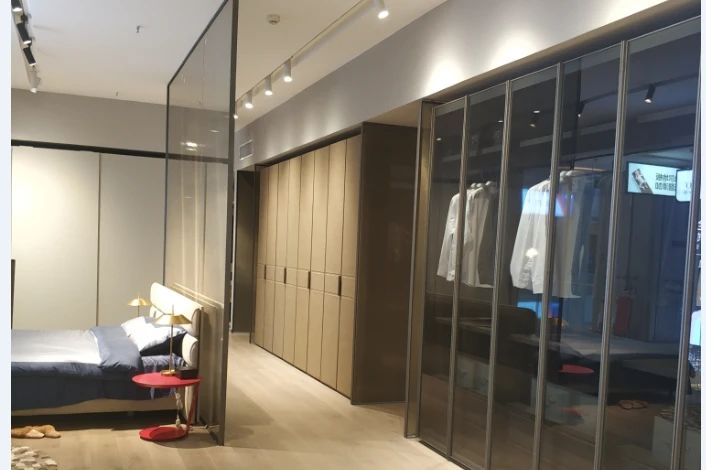

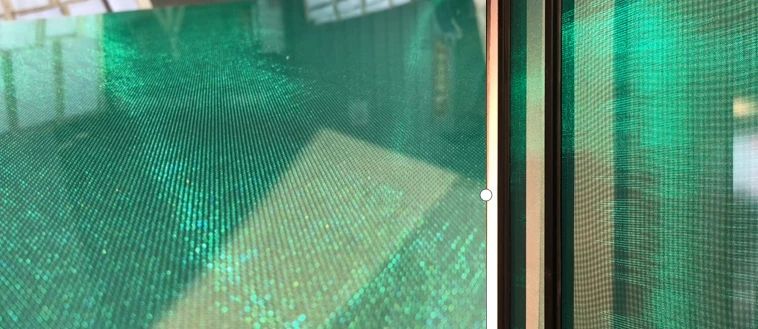

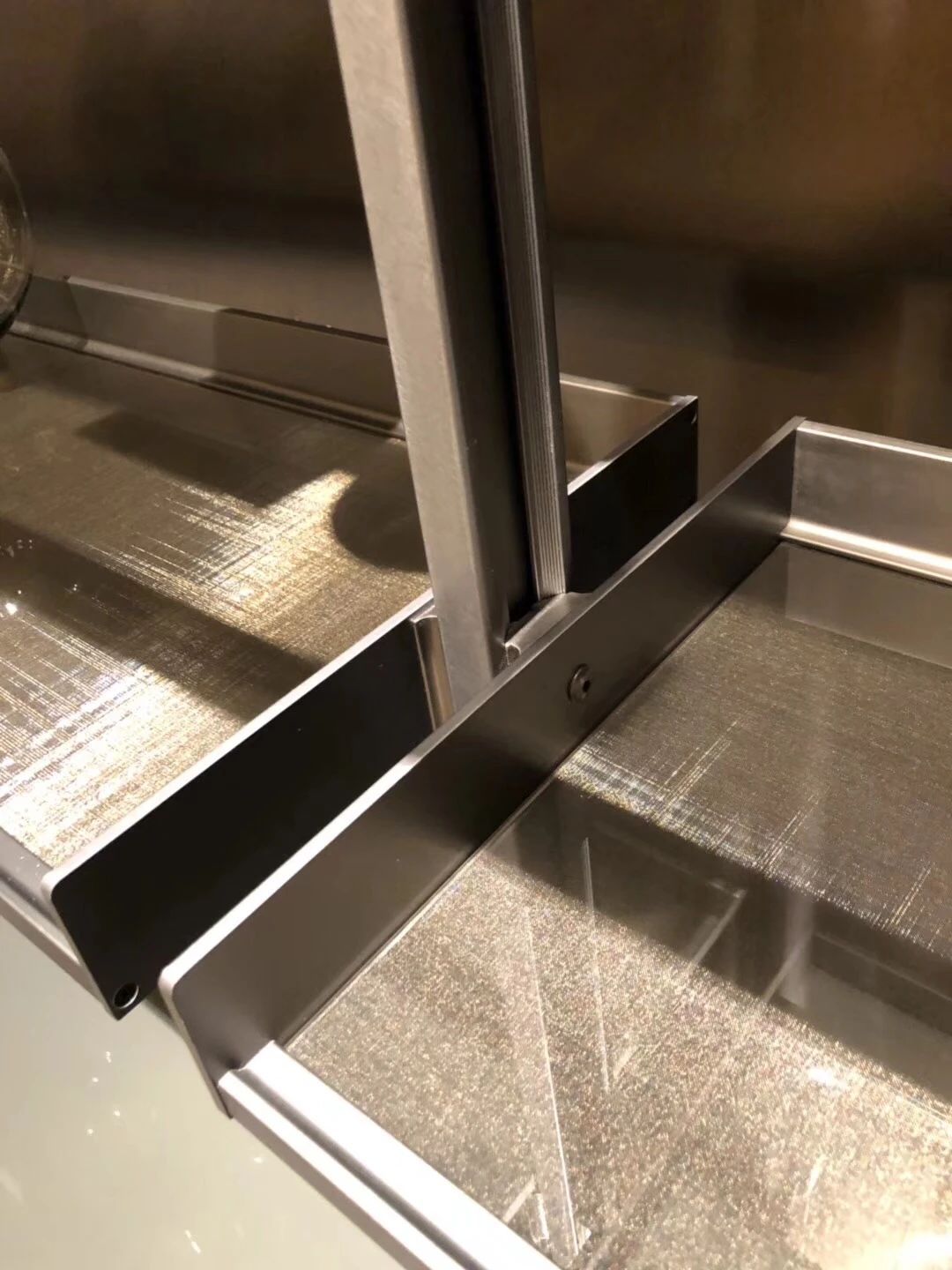

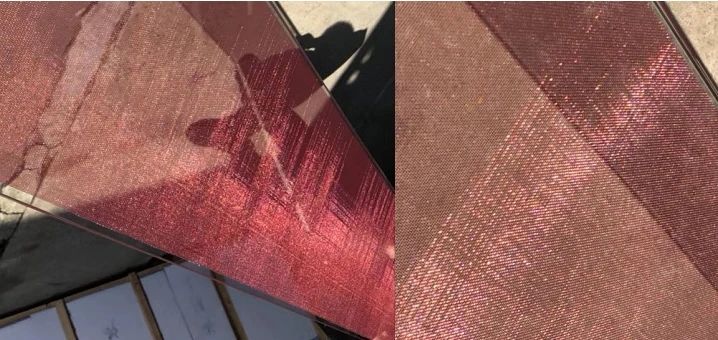

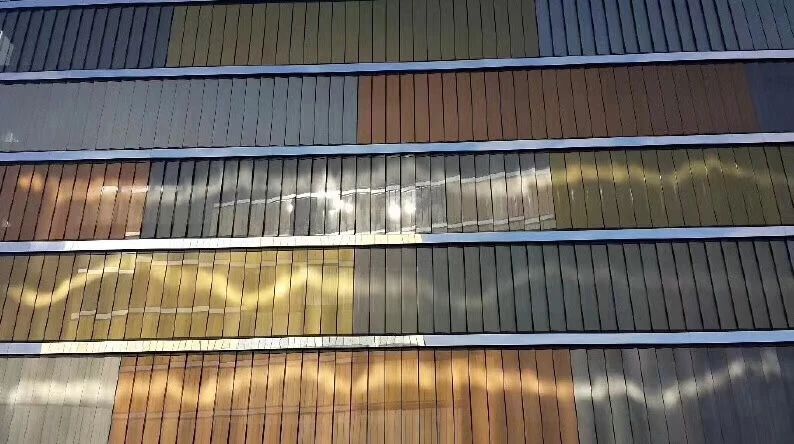

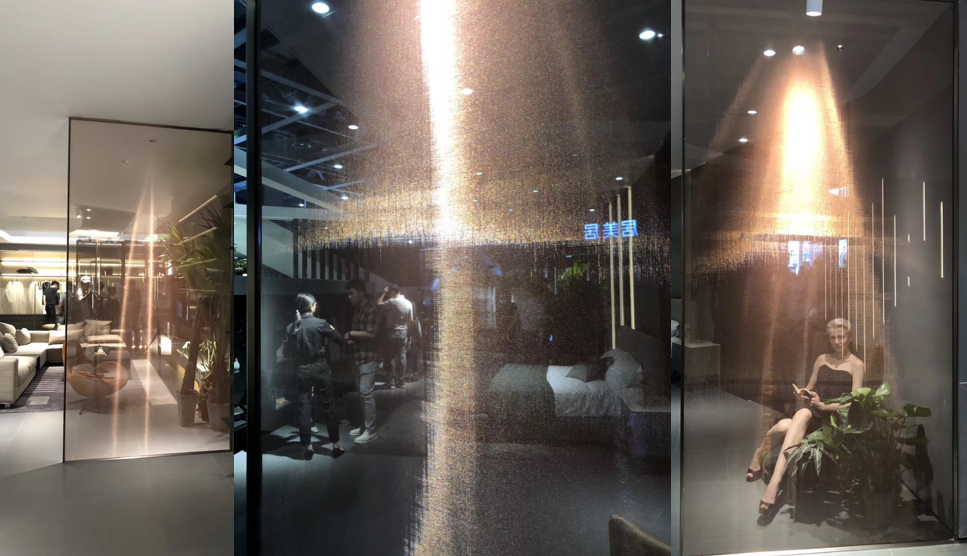

APPLICATION

产品应用细节

03BRO

02GR

02RED

02CO

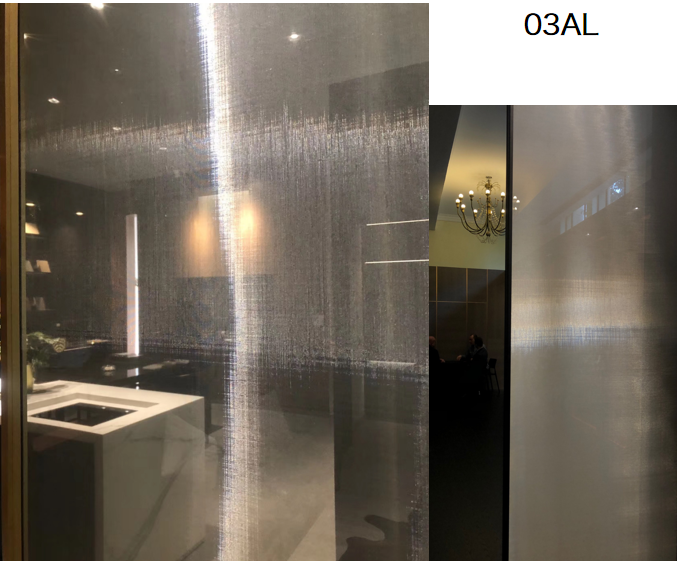

03CU&03AL

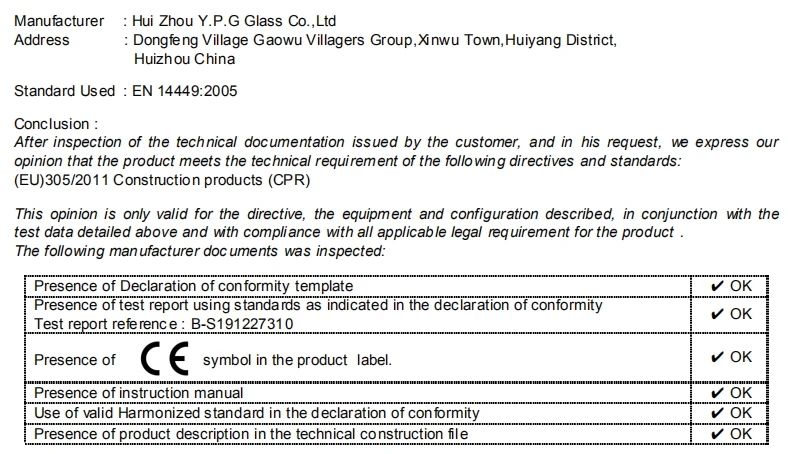

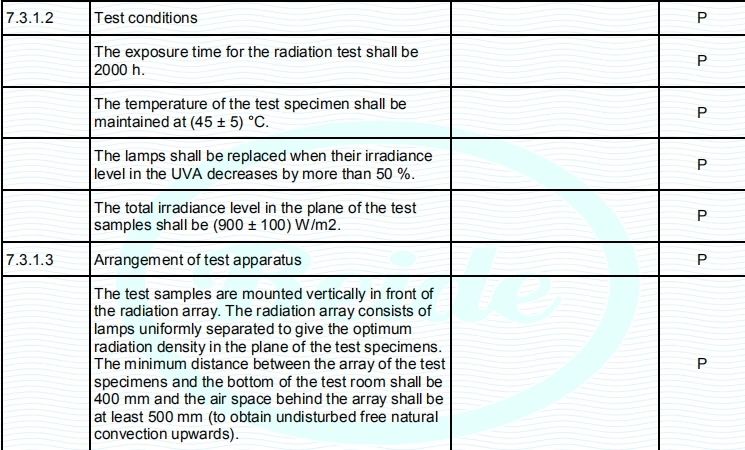

GUARANTEE

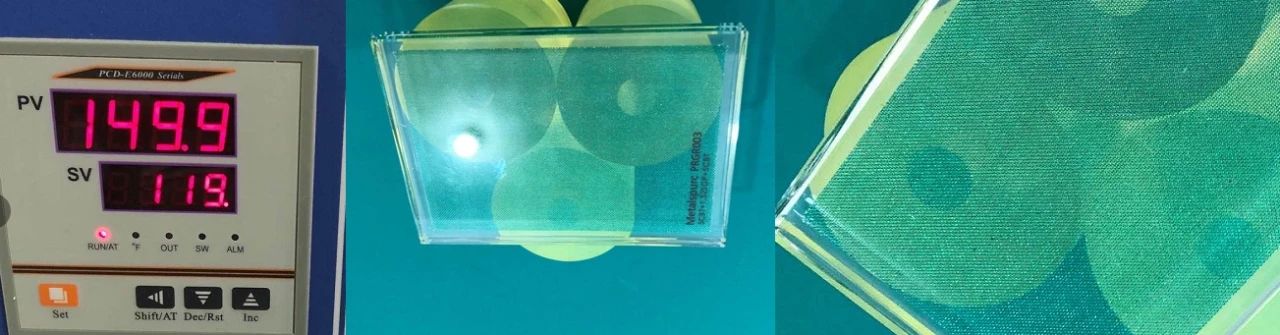

测试

高温150度烘烤2H无泡

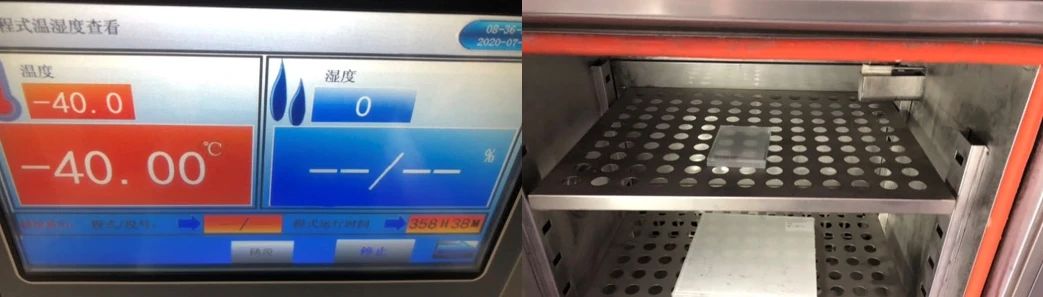

零下40度360H无变化
